In interior design and construction, measurement is often seen as the most important step in the entire workflow. However, in real life, it is also the stage that decides the final result of the project. Even when the design concept is strong and the team is experienced, inaccurate or incomplete measurement data can still lead to serious issues during construction. From our experience at Iport 3D Interior Design and Build, we have often seen that many construction problems are not caused by poor design quality, but rather by inaccuracies or missing early measurement data.
Traditional measurement methods still rely heavily on manual tools and human input, including measuring tapes, spirit levels, and handwritten documentation. While these tools are simple, accessible, and widely used in the industry, they present clear limitations when applied to modern projects, especially those involving complex architectural conditions. One of the biggest challenges is human error. Reading angle mistakes, inaccurate positioning of tools, or mistakes in recording data can easily lead to differences in measurements. Although each error may seem minor on its own, they often build up and become more serious during the construction phase.
Another major limitation of traditional measurement comes from its inability to fully capture complex spaces. In real project sites, it is often found uneven floors, non vertical walls, irregular corners, or slight structural changes that are not easily visible to the naked eye. Manual measurement methods often fail to detect these details accurately or regularly. As a result, key space conditions may be overlooked or simplified during data collection. This leads to incomplete datasets that do not fully represent the actual environment.
In addition, some areas of a site may be difficult to access or measure directly, such as high ceilings, concealed corners, or blocked structural areas. In these cases, estimations are often made instead of precise measurements. While this process may be acceptable in simple projects, it becomes a major risk factor in more complex interior works. The lack of complete and accurate data often remains unnoticed during the design stage, only becoming noticeable when construction begins on site.
In our project experience, we have frequently faced situations where these limitations of traditional measurement methods directly affected construction results. For example, uneven floor conditions are often not fully reflected in manual measurement records. As a result, tile installation may appear not to match visually, with slight height variations affecting the overall finish quality. Similarly, wall verticality issues are frequently underestimated during the measurement phase. Because these errors are not always visually obvious, they are often only discovered after cabinets or built in furniture have been installed. At that point, gaps may appear between surfaces, edges may not align properly, and structural differences become clear, affecting both aesthetics and functionality.
Corner conditions present another common challenge. Traditional measurement methods often assume perfect 90 degree angles unless otherwise specified. However, in real construction environments, corner angles often do not match the ideal geometry due to structural changes or building limits. Even small angular changes can have a significant impact on custom furniture fabrication and installation. Such as a corner cabinet designed based on assumed right angles may not fit accurately into the actual space, leading to gaps, misalignment, or the need for on site modification. In some cases, components may even need to be refabricated entirely, resulting in delays and increased costs.
The common issue across all these scenarios is that the problems exist from the beginning but are not identified during the measurement stage. Instead, they only become visible during construction, when corrections become harder, time consuming, and expensive. This reaction to problems often leads to project problems, increased material waste, and unnecessary rework.

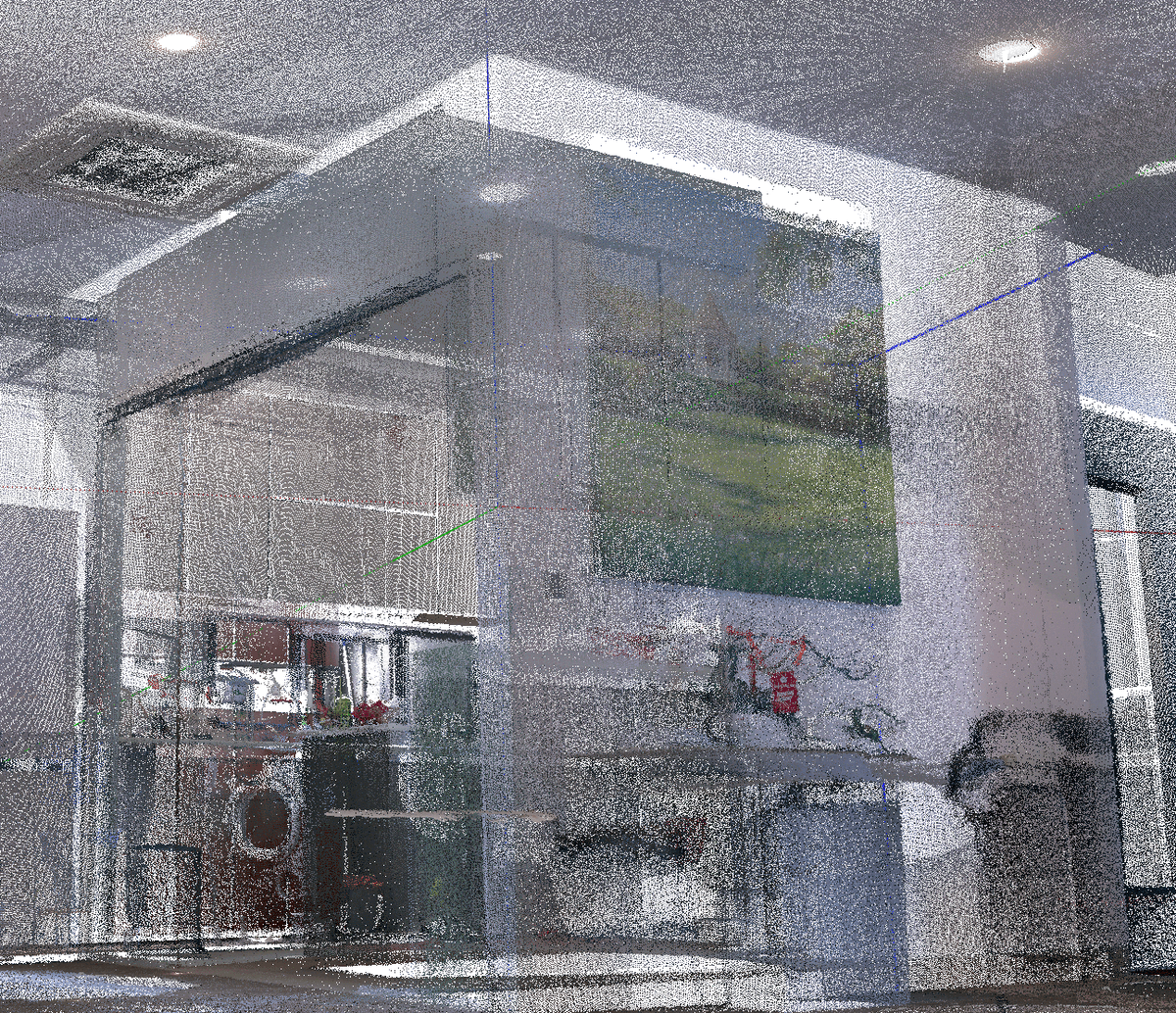

Compared to traditional methods, 3D scanning provides a completely different and more advanced approach to spatial measurement. Using high precision laser scanning systems, 3D scanning technology captures the entire physical environment in great detail within a short period of time. The result is a full digital view of the space known as a point cloud. This dataset contains millions of spatial reference points that show the exact shape of the space.
In our projects, scanning accuracy is typically controlled within an error range of approximately 1–3 millimeters, allowing for highly accurate spatial reconstruction. This point cloud data includes critical information such as floor elevation changes, wall verticality, real corner angles, ceiling structures, and overall spatial dimensions. Unlike traditional measurement, which depends on partial data sampling, 3D scanning captures the entire environment, ensuring that no significant detail is missed.
With this level of accuracy and completeness, designers are able to fully understand the real conditions of a space before the design process begins. This transforms the foundation of interior design from assumption based understanding to data driven certainty.
Traditionally, project workflows often follow a simple step by step structure: design is completed first, construction begins afterward, and problems are dealt with only when they happen on site. This approach may work in simple projects, but in more complex environments, it creates a major risk. Errors discovered during construction often require redesign, demolition, or adjustment work, all of which increase project duration and cost.
With 3D scanning, this workflow is greatly improved. The process shifts to a more forward looking model: real spatial data is captured first, design decisions are made based on verified conditions, and construction proceeds with reduced uncertainty. Instead of reacting to problems on site, issues can be identified and resolved during the design phase. This transforms project management from a corrective approach to prevent problems, significantly reducing construction risks and improving overall project stability.
More importantly, reducing measurement errors at the source leads to fewer issues during construction. This directly minimizes rework, improves coordination between trades, and enhances overall cost control. In modern construction environments where time, cost, and quality are equally critical, this level of efficiency provides a clear competitive advantage.
Measurement should not be viewed simply as a technical task, but rather as the foundation of the entire design and construction process. When measurement data is inaccurate or incomplete, every following decision built upon it becomes unsteady. Structural coordination, material selection, and installation planning are all affected by the quality of initial data.
The introduction of 3D scanning represents a major change in how the industry approaches this base. It moves the process away from experience based estimation and toward precise, data driven decision making. While professional experience remains important, it is now supported and improved by accurate spatial data.
In today’s interior design and construction industry, where expectations for quality, efficiency, and precision continue to increase, accuracy is no longer an optional advantage. It is a basic requirement. By starting with reliable real world data, project teams can reduce uncertainty, minimize errors, and ensure smoother execution from design through to completion.
Ultimately, 3D scanning is not just a tool, but a new standard in modern construction workflows. It enables teams to understand real spatial conditions from the very beginning, build with confidence, and deliver outcomes that are closer to design intent. For projects that prioritize quality, efficiency, and long term reliability, adopting this approach is often the first and most important step toward success.
